Ex. 1. Translate these word-combinations into Russian.
Curved form, elliptic in cross section, long-span components, complexity of joints, trusses, frames, arches, hinged elements, supporting system, beam systems, problems of shuttering, structural efficiency, esthetically attractive building.
Ex. 2. Give a definition of the following word combinations “a shell structure” and “a wide-span structure”.
Ex. 3. Make a list of advantages and disadvantages of shell structures and wide-span structures.
Ex. 4. Answer the questions given below.
1.What two functions does a shell structure perform?
2.Why is it called “a shell”?
3.What are the main shapes of shell structures?
4.Which of them is the most widely used? Why?
5.What building material is the most suitable for constructing a shell? Why?
6.What kinds of buildings are usually erected by the method of wide-span construction?
7.What special constructive elements are applied for widespan structures?
111
Task. Give the written translation of the text.
TEXT 6. PARTS AND ELEMENTS OF A BUILDING
Despite the significant difference between the buildings for different purposes, both in appearance and in the internal structure, they consist of some interrelated architectural and structural elements performing very specific functions.
A building has two main parts: the substructure i.e. the part below ground and the superstructure i.e. the part above ground. The substructure is usually called a foundation. It includes the basementwalls,eventhoughthesemayextendabovetheground.
Both the substructure and the superstructure help to support the load i.e. weight of the building. The dead load of a building is the total weight of all its parts. The live load is the weight of furniture, equipment, stored material of a building, and occupants who live there. In some regions, the wind load of a building is important if the structure has to withstand (выдерживать) storms.
Basic elements of a building can be subdivided into the following groups:
the bearing elements, that receive basic loads arising in a building;
non-load-bearing elements, which divide premises, and protect them from atmosphere influence and keep a certain temperature in a building;
elements which combine both bearing, and non-load- bearing functions.
112
The main elements of a building:
a foundation
walls
floorings
a roof
partitions
stairs
windows
doors
Construction elements of a building:

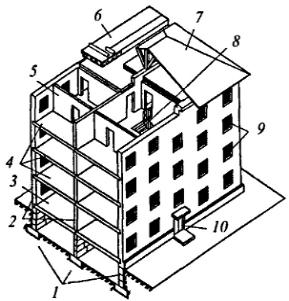

1 – foundation; 2 – walls (external and internal); 3 – basement floor; 4 – flooring; 5 – partition; 6 – open roof; 7 – the roof; 8 – staircase; 9 –windows; 10 – door
113
EXERCISES
Ex. 1. Give the definitions to the terms below.
Substructure of a building
Superstructure of a building
Live load
Dead load
Wind load
Bearing element
Non-load-bearing element
Flooring
Partition
Ex. 2. Make a list of all the basic elements of a civil building.
Ex. 3. Check your answers to ex. 2 and using the text show these elements in Fig. “Construction elements of a building”
Task. Translatethetextusingthedictionary.
TEXT 7. FOUNDATIONS
Foundation (fundamentum) being a part of a building is a building load-bearing structure*. This main element receives all loads from overlying designs and distributes them on the base*. As a rule, it is made of concrete, stone or wood. Foundations are put below the level of freezing the ground to prevent their
114
heaving. Spread foundations (the foundation which is above level of freezing the ground) are applied on unheaving grounds for constructing easy wooden structures. Such type of a foundation is applied basically for small garden houses, summer baths and economic constructions.
Foundations are the chief means of supporting a building and transmitting the loads from a building structure to the ground. They carry both dead and live loads. Building loads can be vertical or horizontal and cause overturning, and the foundation must resist bearing and uplift loads*. The correct choice and design of foundations is essential. In case a foundation is not accurately calculated, differential settlement may occur*. This can cause structural failure or damage and even collapse of the whole building. The type of a foundation to be used depends on the ground conditions and the type of structure adopted. Strip*, socket*, pier*, pile* and slab* foundations are applied in building industry. They are precast, monolithic and precastmonolithic ones. The foundation choice depends on seismicity of a district, the ground and architectural decisions.
Manufacturing of concrete foundations is possible at temperature above 5°С that imposes essential restrictions on seasonal performance of work. Work at lower temperatures is possible with the use of electrowarming up technology.
There are three main types of foundations:
Spread foundations are long slabs of reinforced concrete that extend beyond the outer edges of a building. Such foundations are not as firm as those based on a solid rock. The footing areas in contact with the soil must be of sufficient size to spread the load safely over soil and to avoid excessive
115
settlement of foundations. Any such settlement would cause walls to crack.
Pier foundations are heavy concrete columns that go down through free topsoil to a bed of a firm rock. This bed may also be sand, gravel, or firm clay.
Pile foundations are columns of steel, concrete, or wood. Machines that are called pile drivers* hammer* columns down as deep as 60 meters to a layer of a solid soil or rock. These columns transmit* the building load to a supporting soil. Most skyscrapers are supported by rock foundations.
1 |
|
2 |
3 |
|
4 |
Constructions of foundations
1 – slab foundation; 2 – strip foundation; 3 – pier foundation; 4 – pile foundation
Notes:
bearing load – рабочая (несущая) нагрузка base – основание
bearing foundation – несущий фундамент uplift load – подъёмная нагрузка
to occur – происходить, случаться
spread/shallow foundation – фундамент мелкого заложения
116
strip foundation – ленточный фундамент socket foundation –фундамент стаканного типа
pier foundation – фундамент на столбах, пилонный фундамент
pile foundation – свайный фундамент slab foundation – плитный фундамент pile drivers – копер для забивания свай
hammer – молот для забивания свай; забивать сваи transmit – передавать нагрузку
Task. Translate the text and do the exercises given below.
TEXT 7a. CLASSIFICATION OF FOUNDATIONS
The choice of the type of a foundation depends on:
1)purposes
Bearing foundation.
Combined (комбинированный) foundation that is capable to carry out functions of seismic protection, in addition to bearing functions.
Spread/shallow foundation.
Deep foundation.
Special foundation:forexample,antiseismicfoundations.
2)material used
Stone foundation:
Reinforced-concrete foundation:
117
precast;
monolithic.
Wooden foundation
Aerated foundation (ячеистобетонный)
Classification of foundation
1 – block foundation; 2 – monolithic foudation; 3 – brick foundation;
4 – foundation made of concrete blocks; 5 – foundation on heaving grounds; 6 – foundation on unheaving grounds.
3)a basis of design
Pier foundation (concrete, brick or masonry)
Foundation of a “socket” type
Strip foundation (precast or monolithic)
Deep foundation (заглубленный)
Shallow foundation (малозаглубленный)
118
Pile foundation (precast or monolithic)
Pile-and-beam foundation (свайный фундамент
сростверком)
Slab foundation
Continual (континуальный) foundation is like a circle or a square. Usually they serve as supports forbridges, silos, storage bins(бункер для хранения материалов) etc.
EXERCISES
Ex. 1. Match English and Russian equivalents.
Socket foundation |
свайный фундамент |
Pier foundation |
континуальный фундамент |
Pile foundation |
комбинированныйфундамент |
Shallow foundation |
ленточный фундамент |
Deep foundation |
заглубленный фундамент |
Strip foundation |
фундаментмелкогозаложения |
Slab foundation |
фундамент стаканного типа |
Combined foundation |
пилонный фундамент |
Continual foundation |
плитный фундамент |
Bearing foundation |
несущий фундамент |
Ex. 2. Complete the following sentences.
1.A part of a building which takes loads and transfers them to the base is called…
2.For light and economic construction on unheaving grounds it’s possible to use…
119
3.Seismic and ground conditions, architectural decisions and the type of a structure influence the choice of…
4.Use of electro-warming up technology helps to…
5.To hammer piles down workers use…
6.Most tall buildings stand on…
7.Combined foundations carry out two functions: loadbearing and…
Ex. 3. Findthe answers for the following questions inthe text.
1.What is the principal function of any foundation?
2.What materials are used for foundations?
3.What kind of loads does a foundation carry out?
4.Why is it so important to design and build a proper foundation?
5.What types of foundations are mostly used for construction industry?
6.What factors influence the foundation choice?
7.What does the classification of allfoundations depend on?
Task. Readandtranslatethe textforgettingspecificinformation.
TEXT 8. FLOOR SYSTEMS
Flooring is a horizontal internal protective structure which divides a buildingintostoreys. Asa rule,itisaload-bearingstructure.
